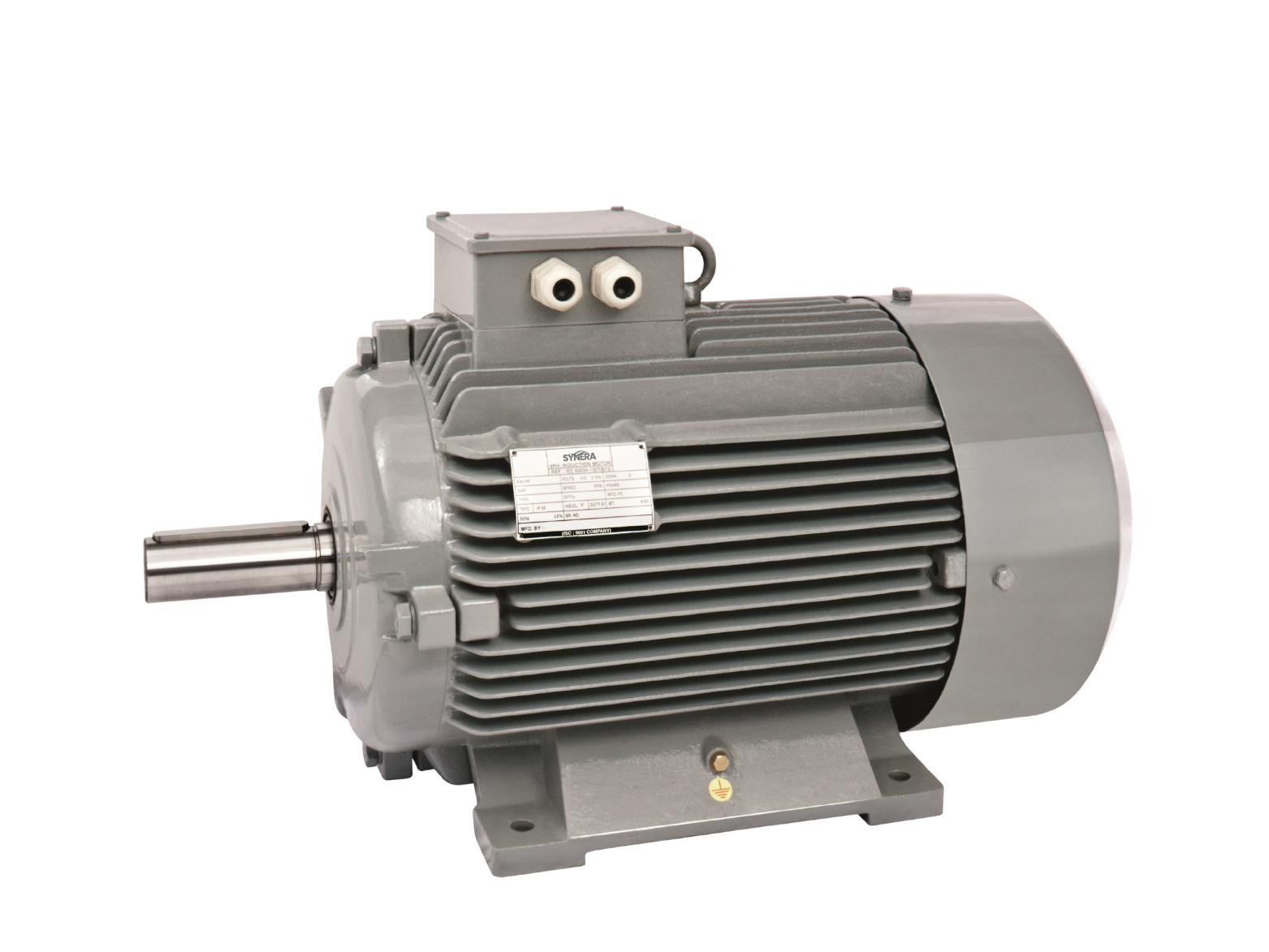

3 Phase Induction Motors
Pumpset Range :
| PRODUCT RANGE – INDUCTION MOTOR | |
|---|---|
| Efficiency Class | IE2 |
| Power Range (KW/HP) | 0.37/0.5 to 22.0/30.0 |
| Version | 415 V, 50Hz, AC Supply |
| Pole | 2, 4, 6, 8 |
| Frame | 71F to 225F |
| Enclosures | Totally Enclosed Fan Cooled |
| Insulation Class | F |
| Duty | S1 |
| Degree Of Protection | IP55 |
| Ambient Temperature Max. | 45°C |
| Hardware | Carbon Steel |
| Mounting | B3, B5, B14, B3B5, B3B14 |
| Types Of Motor | Standard, Brake Motor, Extended Shaft, Cooling Tower. |
Salient Features :
- Rigid and robust construction for reliable operation
- Long service life with durable components
- Designed for wide voltage range applications
- High performance and efficiency
- Excellent surface finish for better protection and appearance
- Suitable for operation up to 45°C ambient temperature
- Low vibration and low noise levels for smooth functioning
Applications :
- Air Compressors
- Pumps
- Pharmaceutical Machinery
- Cranes & Hoists
- Textile Machinery
- Geared Motor Systems
- Chemical Processing Machinery
- Material Handling Equipment
