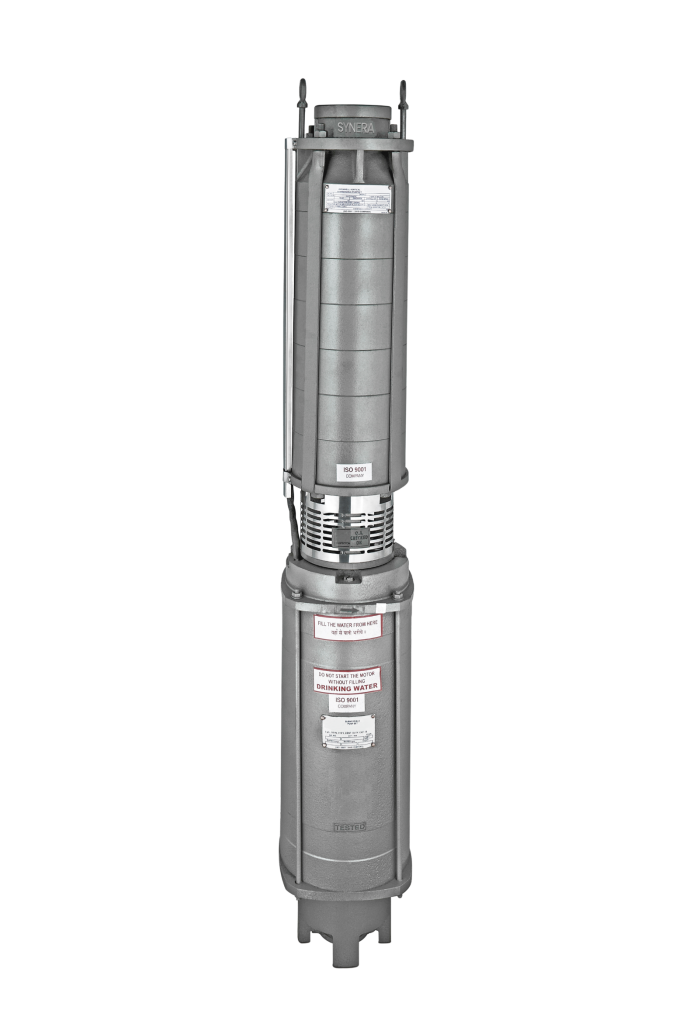

Vertical Openwell Pumpset
Pumpset Range :
| PRODUCT RANGE | ||
|---|---|---|
| Characteristics | Vertical Openwell | |
| Power Range (KW/HP) | 3.7/5.0 – 15.0/20.0 | |
| Rated Speed | 2880 | |
| Version | 380/415 V, 50Hz, 3 Phase | |
| Head Range | Meter | 127 – 13 |
| Feet | 417 – 43 | |
| Flow Range | M3/hr | 21.5 – 99.0 |
| LPM | 358 – 1650 | |
| Motor type | WET type Rewindable | |
| Duty | S1 | |
| Ambient Temperature | 45°C | |
| Pump Liquid |
Clean, Thin, Non-aggressive, Non-explosive, Fresh water without abrasive & solid particles |
|
| Delivery Size | 3″, 4″ | |
Salient Features :
- High operating efficiency ensuring optimum performance.
- Heavy-duty, water-lubricated bearings for long and trouble-free operation.
- Designed to withstand wide voltage fluctuations.
- Noiseless and smooth operation.
- No pump house required, reducing installation cost.
- Easily rewindable stator for convenient maintenance.
Applications :
- Agricultural Irrigation
- Well Irrigation Systems
- Industrial & Civil Water Supply Domestic Water Supply
- Drip & Sprinkler Irrigation Systems
- Gardens & Fountains Pressure Boosting Applications
- High Head & High Discharge Applications
