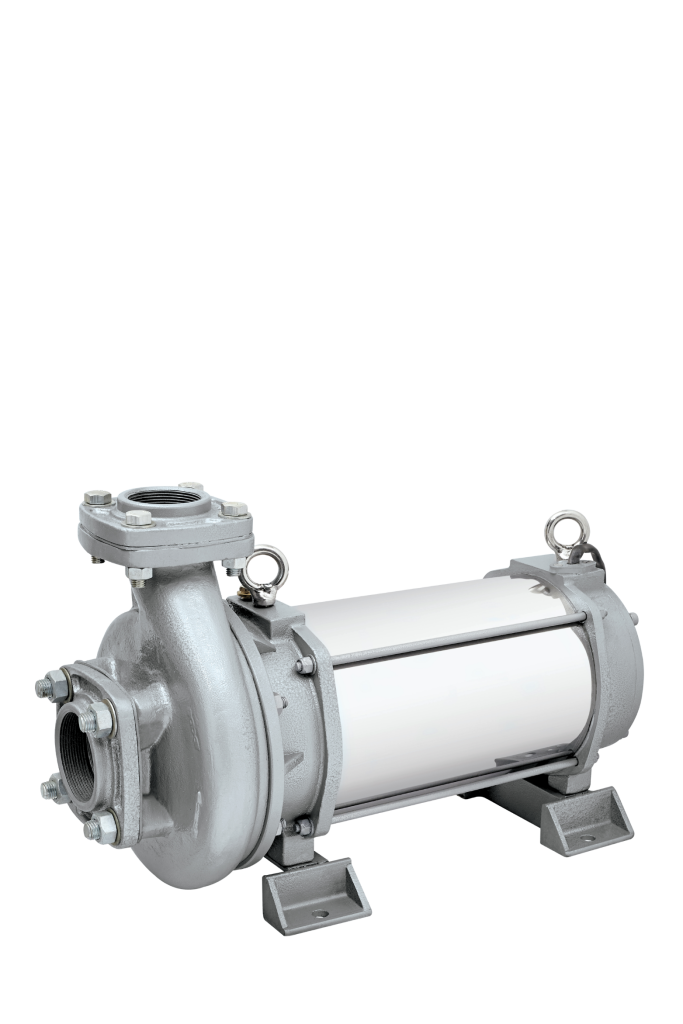

Horizontal Openwell Pumpset
Pumpset Range :
| PRODUCT RANGE | |||
|---|---|---|---|
| Characteristics | Single Phase | Three Phase | |
| Power Range (KW/HP) | 0.37/0.5 – 2.2/3.0 | 1.5/2.0 – 22.5/30.0 | |
| Rated Speed | 2850 | 2880 | |
| Version | 230v, 50Hz, A.C Supply | 380/415v, 50Hz, A.C Supply | |
| Head Range | Meter | 5.0 – 32.5 | 8.0 – 70 |
| Feet | 16 – 106 | 26 – 230 | |
| Flow Range | M³/hr | 54 – 2.7 | 195 – 7.8 |
| LPM | 900 – 45 | 3250 – 130 | |
| Motor Type | Wet Type Rewindable | Wet Type Rewindable | |
| Duty | S1 | S1 | |
| Degree Of Protection | IP58 | IP58 | |
| Ambient Temperature | 45°C | 45°C | |
| Pump Liquid |
Clean, Thin, Non-aggressive, Non Explosive, Fresh water without abrasive & solid particles. |
||
| Suction x Delivery Size |
1”x 1”, 1.5”x 1.5”, 2”x 1.5”, 2”x 2”, 2.5”x 2”, 2.5”x 2.5”, 3”x 2.5”, 3”x 3” |
2”x 1.5”, 2”x 2”, 2.5”x 2”, 2.5”x 2.5”, 3”x 2.5”, 3”x 3”, 4”x 4”, 5”x 5” |
|
Salient Features :
- Designed to withstand wide voltage fluctuations
- Suitable for underwater operation – no priming or foot valve required
- High operating efficiency delivering higher water discharge
- Dynamically balanced rotating parts for smooth performance
- Vibration-free and noiseless operation
- Water-lubricated motor with high-quality oil seal
- Maintenance-free operation due to water-lubricated bearings and bushes
- Easy dismantling and repair-friendly design
Applications :
- Agricultural Irrigation
- Well Irrigation Systems
- Industrial & Civil Water Supply
- Domestic Water Supply Drip & Sprinkler Irrigation Systems
- Gardens & Fountains
- Pressure Boosting Applications
- High Head & High Discharge Applications
